High-Throughput Real-Time Data with BoundedChannel and SignalR

Background

If you work on systems that ingest telemetry, sensor readings, trading ticks, or any fast-moving data, you have probably run into this problem:

The producer is way faster than the consumer.

NATS can push thousands of messages per second into your service. But your SignalR hub, database writer, or downstream API cannot keep up one message at a time.

The classic fix? A queue that batches.

In .NET, System.Threading.Channels gives us exactly that. No external dependencies. No third-party libraries. Just a built-in, high-performance, thread-safe pipe.

In this post, we will build a DataPointService that:

• Consumes data points from NATS at high speed
• Writes them into a BoundedChannel<DataPointValue> (capacity 10,000, single-reader)
• Flushes in batches (1,000 items or every 50ms, whichever comes first)
• Broadcasts each batch to connected dashboards through a SignalR DataPointHub

By the end, you will have a production-ready pattern for bridging any fast producer with a slower consumer.

Why BoundedChannel?

System.Threading.Channels ships with .NET and comes in two flavors:

• Channel.CreateUnbounded<T>() - no capacity limit, can eat all your memory
• Channel.CreateBounded<T>(capacity) - fixed capacity with backpressure

For high-throughput ingestion, always pick bounded.

Here is why:

• Backpressure - when the channel is full, the producer waits (or drops), so your service does not run out of memory
• Single-reader optimization - the runtime skips internal locks when it knows only one consumer exists
• Predictable memory footprint - you decide the maximum buffered items upfront

Think of it as a pipe with a known diameter. You control how much water flows through it.

Step 1: Define the Data Model

Start with the value type that flows through the channel.

1234
public sealed record DataPointValue(    string SensorId,    double Value,    DateTime Timestamp);

Simple and immutable. Every reading from NATS gets mapped into this.

Step 2: Configure Dispatch Options

Instead of hardcoding batch size and flush interval, pull them from configuration.

12345678
public sealed class DataPointDispatchOptions{    public int ChannelCapacity { get; set; } = 10_000;    public int BatchSize { get; set; } = 1_000;    public int FlushIntervalMs { get; set; } = 50;    public bool SingleReader { get; set; } = true;    public bool SingleWriter { get; set; } = false;}

And the matching appsettings.json section:

123456789
{  "DataPointDispatch": {    "ChannelCapacity": 10000,    "BatchSize": 1000,    "FlushIntervalMs": 50,    "SingleReader": true,    "SingleWriter": false  }}

SingleReader: true tells the channel that only one consumer will read from it. The runtime uses this hint to remove synchronization overhead internally.

SingleWriter: false because multiple NATS subscription callbacks may write concurrently.

Step 3: Create the SignalR Hub

The hub itself is intentionally thin. It is just the broadcast endpoint.

1234567
public sealed class DataPointHub : Hub{    public override async Task OnConnectedAsync()    {        await base.OnConnectedAsync();    }}

No methods on the hub. The server pushes to clients, clients just listen.

On the client side (JavaScript), the connection looks like this:

1234567891011
const connection = new signalR.HubConnectionBuilder()    .withUrl("/data-point-hub")    .withAutomaticReconnect()    .build(); connection.on("ReceiveDataPoints", (batch) => {    // batch is an array of { sensorId, value, timestamp }    updateDashboard(batch);}); await connection.start();

Every time the server flushes a batch, all connected clients receive it instantly.

Step 4: Build the DataPointService

This is the core. A BackgroundService that owns the channel and runs two loops:

1. Writer side
   • a NATS subscriber pushes data points into the channel
2. Reader side
   • a flush loop drains the channel in batches and broadcasts via SignalR

1234567891011121314151617181920212223242526272829303132333435363738
public sealed class DataPointService : BackgroundService{    private readonly Channel<DataPointValue> _channel;    private readonly IHubContext<DataPointHub> _hubContext;    private readonly DataPointDispatchOptions _options;    private readonly INatsConnection _natsConnection;    private readonly ILogger<DataPointService> _logger;     public DataPointService(        IHubContext<DataPointHub> hubContext,        IOptions<DataPointDispatchOptions> options,        INatsConnection natsConnection,        ILogger<DataPointService> logger)    {        _hubContext = hubContext;        _options = options.Value;        _natsConnection = natsConnection;        _logger = logger;         _channel = Channel.CreateBounded<DataPointValue>(            new BoundedChannelOptions(_options.ChannelCapacity)            {                SingleReader = _options.SingleReader,                SingleWriter = _options.SingleWriter,                FullMode = BoundedChannelFullMode.Wait            });    }     public ChannelWriter<DataPointValue> Writer => _channel.Writer;     protected override async Task ExecuteAsync(CancellationToken stoppingToken)    {        var consumerTask = ConsumeFromNatsAsync(stoppingToken);        var flushTask = FlushLoopAsync(stoppingToken);         await Task.WhenAll(consumerTask, flushTask);    }}

Let us break this down.

The constructor creates a BoundedChannel with FullMode = Wait. When the buffer hits 10,000 items, the NATS callback pauses until the reader drains some space. This is backpressure in action.

ExecuteAsync starts two concurrent loops. They run for the entire lifetime of the service.

Step 5: Consume from NATS

The writer side subscribes to a NATS subject and pushes each message into the channel.

123456789101112131415
private async Task ConsumeFromNatsAsync(CancellationToken stoppingToken){    await foreach (var msg in _natsConnection        .SubscribeAsync<DataPointValue>("datapoints.>", cancellationToken: stoppingToken))    {        if (msg.Data is null)        {            continue;        }         await _channel.Writer.WriteAsync(msg.Data, stoppingToken);    }     _channel.Writer.Complete();}

SubscribeAsync returns an IAsyncEnumerable. Each message arrives, gets unwrapped, and lands in the channel.

When the cancellation token fires, the loop exits and we call Writer.Complete() to signal the reader that no more data is coming.

The wildcard subject datapoints.> means we subscribe to all subjects under the datapoints namespace, so datapoints.soil, datapoints.temperature, etc.

Step 6: The Batch Flush Loop

This is where the magic happens. The reader drains up to BatchSize items or flushes after FlushIntervalMs, whichever triggers first.

1234567891011121314151617181920212223242526272829303132333435363738394041424344
private async Task FlushLoopAsync(CancellationToken stoppingToken){    var batch = new List<DataPointValue>(_options.BatchSize);    var reader = _channel.Reader;     while (!stoppingToken.IsCancellationRequested)    {        batch.Clear();         using var cts = CancellationTokenSource            .CreateLinkedTokenSource(stoppingToken);        cts.CancelAfter(TimeSpan.FromMilliseconds(_options.FlushIntervalMs));         try        {            while (batch.Count < _options.BatchSize)            {                var item = await reader.ReadAsync(cts.Token);                batch.Add(item);            }        }        catch (OperationCanceledException)        {            // Either the flush interval expired or the service is stopping.            // In both cases, flush whatever we have collected so far.        }         if (batch.Count > 0)        {            await BroadcastBatchAsync(batch);        }    }     // Drain remaining items after cancellation    while (reader.TryRead(out var remaining))    {        batch.Add(remaining);    }     if (batch.Count > 0)    {        await BroadcastBatchAsync(batch);    }}

The trick is the linked CancellationTokenSource.

We create a token that expires after 50ms. The inner loop reads as fast as it can until either:

• It collects 1,000 items (batch full)
• The 50ms timer fires (time flush)
• The service shuts down (graceful stop)

In every case, whatever we collected gets flushed.

After the outer loop exits, we drain any leftover items with TryRead so nothing is lost.

Step 7: Broadcast via SignalR

The broadcast method sends the batch to all connected clients.

123456789101112131415
private async Task BroadcastBatchAsync(List<DataPointValue> batch){    try    {        await _hubContext.Clients.All.SendAsync(            "ReceiveDataPoints",            batch);         _logger.LogDebug("Broadcasted {Count} data points", batch.Count);    }    catch (Exception ex)    {        _logger.LogError(ex, "Failed to broadcast {Count} data points", batch.Count);    }}

We use IHubContext<DataPointHub> instead of calling the hub directly. This is how you push messages from outside a hub class in ASP.NET Core.

The try/catch ensures that a single broadcast failure does not crash the entire service.

Step 8: Wire Everything Up

Register the service and options in Program.cs.

1234567891011
builder.Services.Configure<DataPointDispatchOptions>(    builder.Configuration.GetSection("DataPointDispatch")); builder.Services.AddSignalR();builder.Services.AddHostedService<DataPointService>(); var app = builder.Build(); app.MapHub<DataPointHub>("/data-point-hub"); app.Run();

That is the complete setup. Configuration comes from appsettings.json, the channel is created internally, and the two loops start automatically when the host launches.

How the Pieces Fit Together

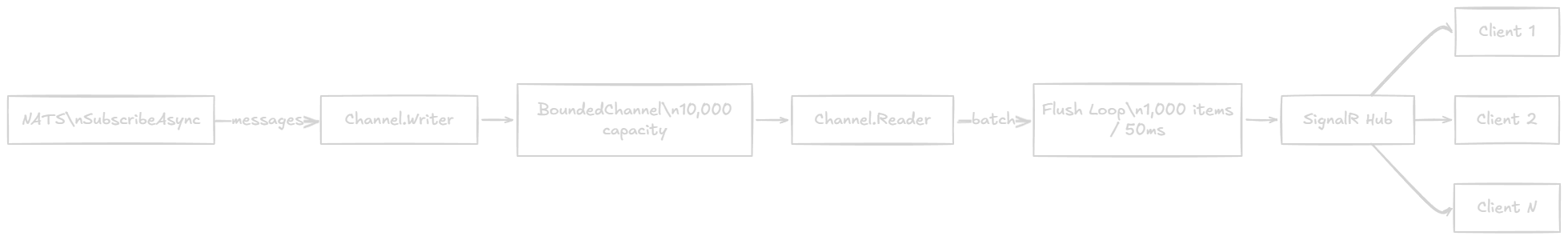

Here is the full flow:

1
NATS → SubscribeAsync → Channel.Writer → [BoundedChannel 10K] → Channel.Reader → Batch (1000/50ms) → SignalR Hub → Clients

• NATS pushes at full speed
• The channel absorbs bursts up to 10,000 items
• The flush loop collects batches efficiently
• SignalR delivers one batch per flush to all dashboards

No message is processed one at a time. No Task.Delay polling. No manual thread management.

Why This Pattern Matters

Channel-based batching is the modern .NET approach for bridging fast producers with slower consumers.

Here is what you get:

• Backpressure - the producer slows down when the consumer cannot keep up, so memory stays predictable
• Throughput - batching reduces the number of SignalR calls from thousands per second to a few dozen
• Latency - the 50ms time trigger ensures clients see updates within 50ms even during low traffic
• Graceful shutdown - remaining items are drained before the service stops
• Configurability - batch size, channel capacity, and flush interval are all in appsettings.json

Compare this to the naive approach of calling SendAsync for every single data point. At 5,000 messages per second, that is 5,000 SignalR broadcasts. With batching, it drops to roughly 5 flushes of 1,000 items each, or about 100 flushes of 50ms-worth of data during lighter loads.

When to Tune the Options

The defaults (10,000 capacity / 1,000 batch / 50ms flush) work well for most real-time dashboard scenarios. But you may need to adjust:

• High burst, low steady-state - increase ChannelCapacity so bursts do not trigger backpressure
• Ultra-low latency - decrease FlushIntervalMs to 10-20ms at the cost of more frequent, smaller batches
• Heavy payloads - decrease BatchSize so each SignalR message stays within a reasonable size
• Multiple consumers - set SingleReader: false if you add a second reader (e.g., a database writer alongside SignalR)

Always benchmark with realistic load. Channel performance is excellent, but your bottleneck is usually the downstream consumer.

Wrapping Up

You do not need a complex message broker pipeline to handle high-throughput real-time data in .NET.

A BoundedChannel<T> with time-and-count-based flushing gives you backpressure, batching, and predictable memory usage out of the box.

Pair it with NATS for ingestion and SignalR for broadcasting, and you have a production-ready pipeline that handles thousands of data points per second with minimal code.

The key takeaway: stop processing messages one at a time. Channels let you absorb bursts, batch intelligently, and push to consumers efficiently.

Frequently Asked Questions

What is BoundedChannel in .NET?

BoundedChannel<T> is a thread-safe, high-performance in-process producer-consumer queue from System.Threading.Channels. Unlike ConcurrentQueue, it has a fixed capacity and provides backpressure — when the buffer is full, writers wait until consumers drain space. It supports SingleReader and SingleWriter optimizations that remove internal lock overhead. It ships with .NET and requires no external packages.

When should I use BoundedChannel vs. UnboundedChannel?

Use BoundedChannel when your producer is faster than your consumer and you need memory safety. The fixed capacity prevents unbounded memory growth during traffic spikes. Use UnboundedChannel only when you are certain the consumer can always keep up, or when message loss is acceptable and you prefer never blocking the producer.

How does time-and-count batch flushing work?

The flush loop reads from the channel into a buffer. It stops when either the batch reaches a count threshold (e.g., 1,000 items) or a time interval expires (e.g., 50ms), whichever comes first. This is implemented using a linked CancellationTokenSource with CancelAfter. The result is efficient batching under high load and low-latency delivery under light load.

Can I use BoundedChannel with SignalR for real-time dashboards?

Yes. The pattern in this post is designed exactly for that. NATS (or any fast producer) writes into the channel, a BackgroundService reads in batches, and IHubContext<THub> broadcasts each batch to all connected SignalR clients. This reduces thousands of individual SendAsync calls to a few dozen batch broadcasts per second.

What is backpressure in System.Threading.Channels?

Backpressure is a flow control mechanism where the producer slows down when the consumer cannot keep up. In BoundedChannel, when the buffer reaches capacity, WriteAsync awaits until space is available. This prevents memory exhaustion and keeps your service responsive. The FullMode option controls the behavior: Wait (block the writer), DropNewest, DropOldest, or DropWrite.
